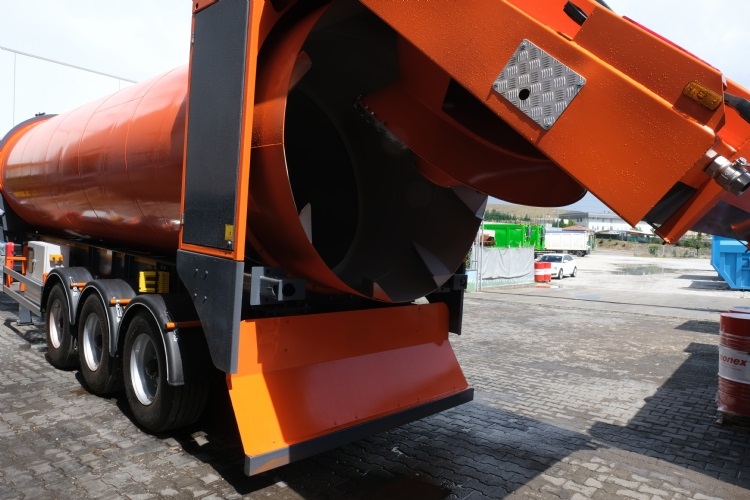

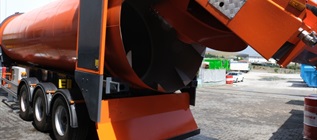

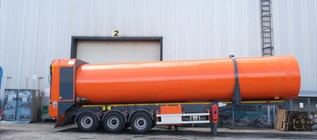

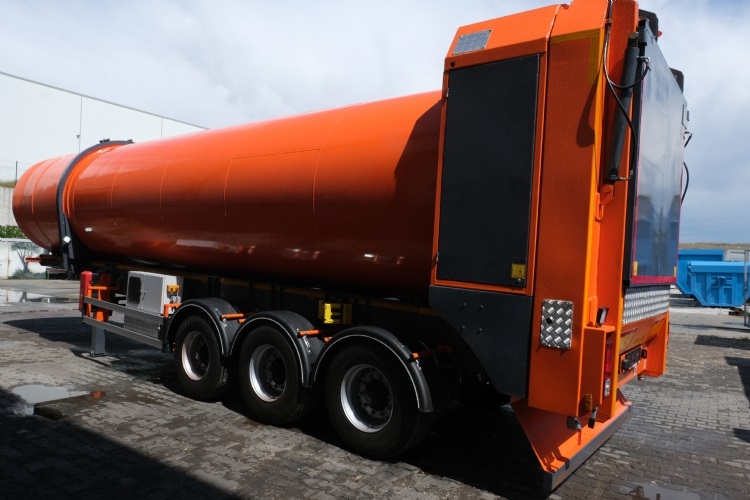

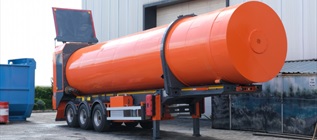

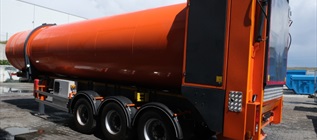

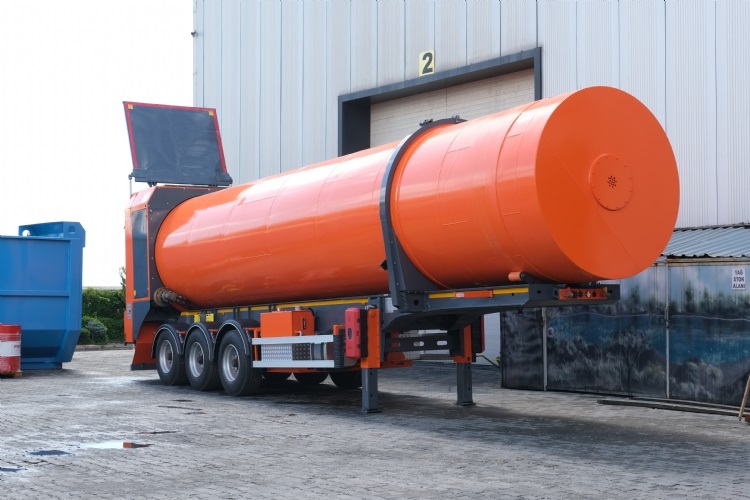

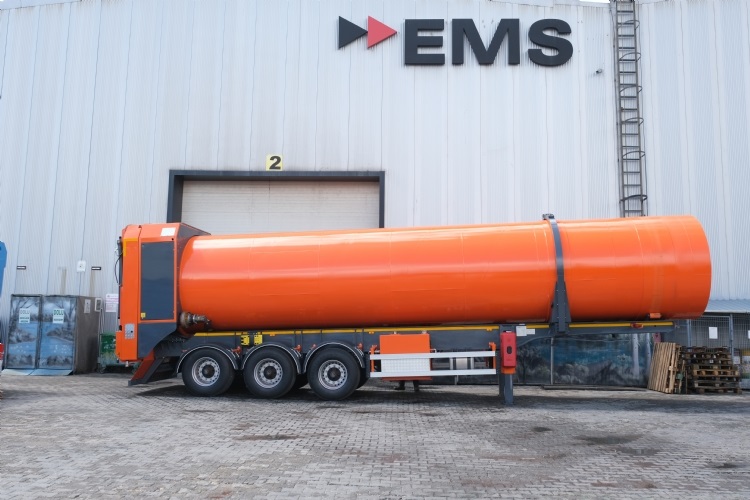

Round Garbage Transfer Trailer
DIMENSIONS
Vehicle Length
6,000 – 13,600mm
Vehicle Height
3900mm
Width
2490mm
Capacity
12.000 kg - 35500 kg
Axle capacity (registered)
3x9000 kg / 3x12.000 kg
King pin load (registered)
11500 kg
Curb weight (Base 5mm, sides 4mm)
12.000 kg - 14200 kg (+-3%)
Axles
3x9 -3X12 tons single tire with air suspension
Tire and Rim
6 tires and wheels, size 385/65R 22.5.
ABS-EBS Modulator
2S2M EBS Modulator
Electrical System
24 volt lighting system in accordance with ECE R48 regulation.
Paint
After sandblasting, double coat epoxy primer, double coat full acrylic oven paint.
Chassis
Strenx® 700MC material 4 mm and 6 mm thick
Drive gear and return bearing bolted connection to the rear of the roller
Metal ring mounted on the tube on carrier wheels at the front
Cover Opening
Filling and discharge door hydraulically opens
Back Cover
The part of the back cover that touches the garbage HARDOX or EQUIVALENT 400-450
CHASSIS
I profile
Top and bottom flats 120x12 ST52 ( S355 ), mirror plate 6 mm Strenx® 700MC
Chassis Cross Country
Chassis main crosses 6 mm Strenx® 700MC, other crosses ST52 material
Buffer
Specially designed E-certified bumper.
side protection
Side protection in accordance with ECE R73 regulation
King pin
2-3.5" flanged king-pin conforming to ECE R55 regulation.
Hydraulic Feet
Hydraulic feet, each with a carrying capacity of 24 tons.
HYDRAULIC
drive
From vehicle independent 90HP Diesel engine or Vehicle PTO
Pump
105cc Closed cycle + 10cc Geared Tandem
